Aero Systems
Aircraft's Actuation, Interior and Control System’s components.
Components Manufactured
- Air Management System
- Thrust Reversal Actuation Systems
- Flap Actuation Systems
- Lubrication system
- Aircraft Door Actuation system
- Aircraft Wing Fitting
- Bracket Housings
- Avionics
- Environment Control Systems
- Fire & Security
-

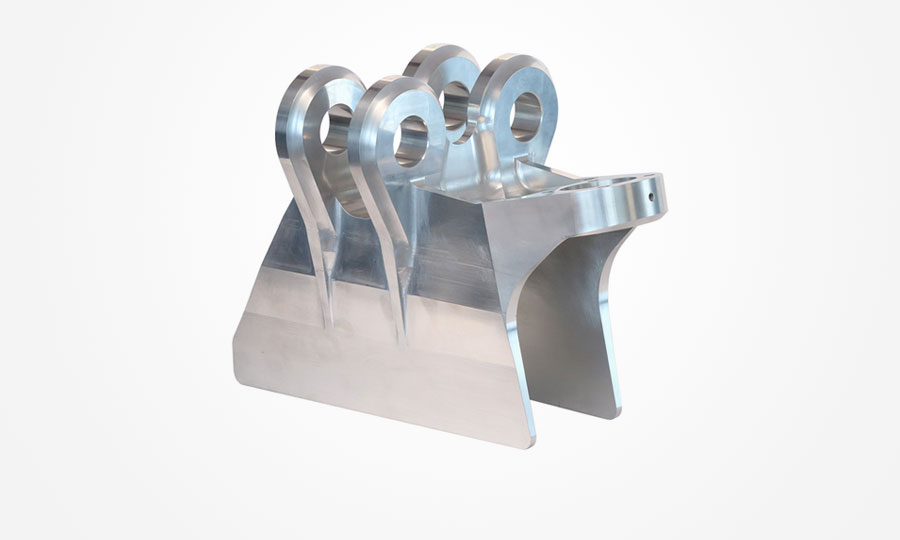

REAR FITTING, Size: 240 x 282 x 386 mm Material: Aluminium Criticality: 15 μm dimensional tolerance and 20 μm geometrical tolerance
-
BOOST INSEPARABLE HOUSING, Size: 159 x 85 mm Material: Aluminium alloy Criticality: 12 μm dimensional tolerance and 12 μm perpendicularity and flatness Special Process: Anodize Typ II, Chemical Conversion and NDT
-
HOUSING CHECK VALVE, Size: 320 x 99 x 47 mm Material: Aluminum 6061 Criticality: 12 μm Geometrical tolerance Special Process: Anodize Typ II, Chemical Conversion and NDT
-
HOUSING-FDAC, Size: 108 x 585 x 518 mm Material: Aluminium 6061 Criticality: 50 μm geometrical tolerance Special Process: Chemical Conversion, Powder coating and NDT
-
COVER HOUSING, Size: 375.4 x 325 x 36 mm Material: Aluminum 6061 Criticality: 5 μm perpendicularity and 25 μm dimensional tolerance Special Process: Conversion coating and Painting
-
Size: 127 x 45 x 171 mm Material: Stainless Steel Criticality: 18 μm dimensional tolerance and 0.3 Ra Surface finish Special Process: Passivation, Heat treatment and NDT
-
JACK HEAD HOUSING, Size: 116 x 133 x 211 mm Material: Aluminium Forging Criticality: 18 μm dimensional tolerance and 0.3 Ra Surface finish Special Process: Anodize, Chemical Conversion, Paiting, Heat treatment and NDT
-
JACK HEAD, Size: 127 x 45 x 171 mm Material: Stainless Steel Criticality: 18 μm dimensional tolerance and 0.3 Ra Surface finish Special Process: Passivation, Heat treatment and NDT
